Product Specifications

Functions

Real time tracking

History playback

Double USB charger

Voice monitoring & recording

Free installation

Multiple alarms

Spec

GSM Specification

GSM Frequency

GSM850/900/1800/1900Mhz

GPRS

Class 12, TCP/IP

GPS chip set

MTK2503DL

Working current

30-50mA (12V DC)

Standby current

<5mA

Working votage

12V DC/24V DC

GPS Specification

Location accuracy

<10 meters

Tracking sensitivity

-163dBm

Acceleration of gravity

±2g

Functional Specification

Operating temperature

-20℃～ 70℃

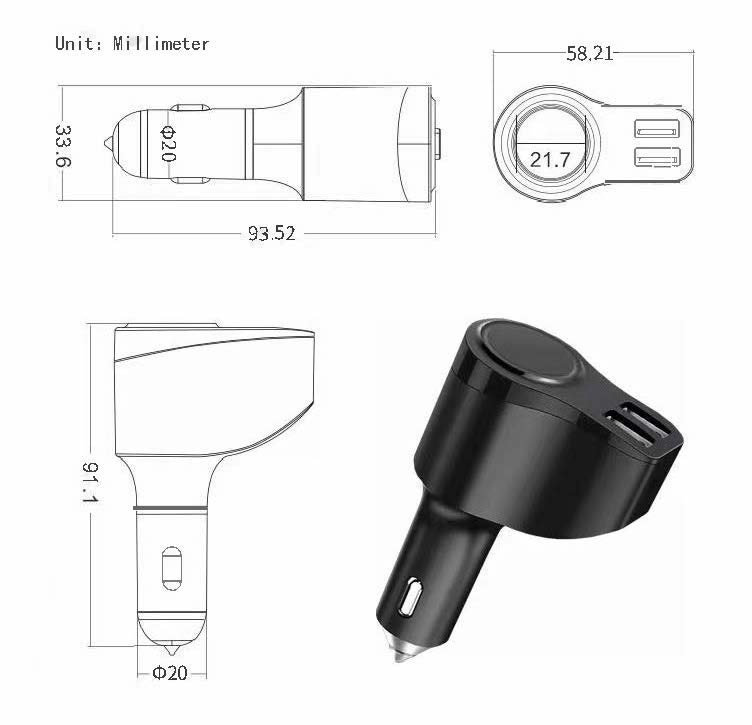

Device dimension

58.5(L)X33.8(W)X95.5(H) (mm)

Device weight

50g
