Popular science knowledge: Chipset function of GPS tracker

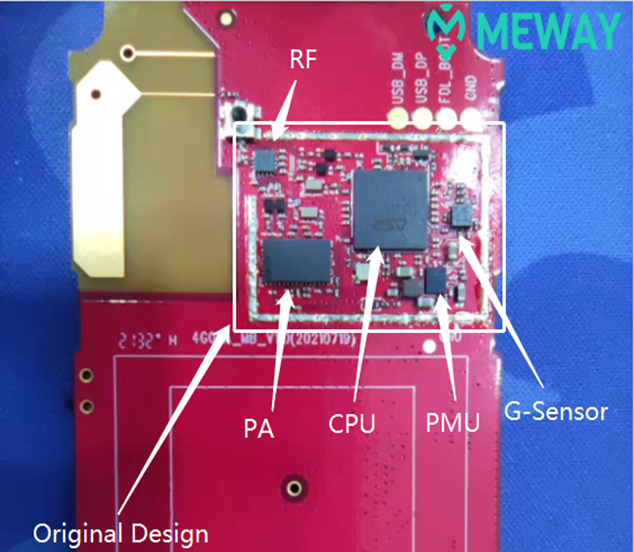

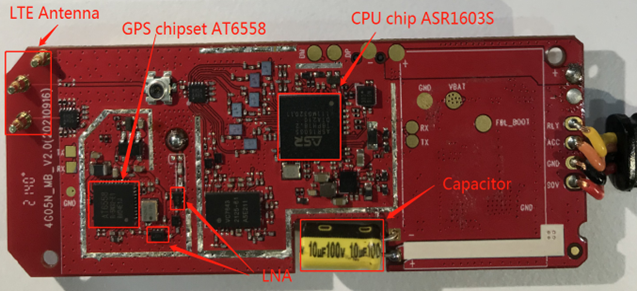

No.	Chip Name	Functions	Low quality will cause problems
1	CPU chip	Core Processor	Crash, offline
2	PMU	Voltage change-over	Poor performance, incorrect positioning, crash, burn up
3	PA	RF Power Amplifier	Bad signal, off line
4	RF-swtich	Rf channel conversion	Bad signal, off line
5	G-sensor	Motion sensor	Abnormal static, unable to sleep mode, power consumption fast
6	LNA	GPS signal amplification	Location drift
7	AVX tantalum capacitor	Stabilize power	Location drift,crash
8	GPS chip	Processing GPS signal	Location drift
9	Capacitor	Matching or voltage decoupling	Bad signal, incorrect positioning
10	DCDC	voltage change-over, from 9-90V to 4V	Bad signal,incorrect positioning, crash, burn up
11	Chip inductor	Matching inductance	Bad signal,incorrect positioning
12	Power inductor	Voltage change-over	Bad performance, incorrect positioning, crash
13	recharged IC	Charge the backup battery	Unable to charge, no ACC alarm function
14	Ceramic antenna	Receiving gps signal	Location drift or can not locate
15	GSM antenna	Receive and transmit Rf signals	Bad signal, off line
16	High temperature battery	Backup battery power off alarm	Battery bulge, leakage, fire and explosion
